schnek::GridTransform< BaseGrid, Transformation, CheckingPolicy > Class Template Reference

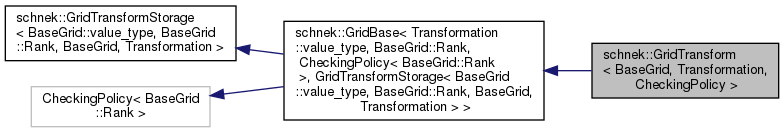

Inheritance diagram for schnek::GridTransform< BaseGrid, Transformation, CheckingPolicy >:

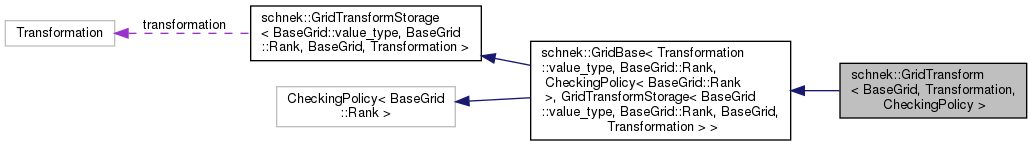

Collaboration diagram for schnek::GridTransform< BaseGrid, Transformation, CheckingPolicy >:
Public Types | |
| enum | { Rank = BaseGrid::Rank } |
| typedef Transformation::value_type | value_type |
| typedef BaseGrid::IndexType | IndexType |
| typedef BaseGrid | BaseGridType |
 Public Types inherited from schnek::GridBase< Transformation::value_type, BaseGrid::Rank, CheckingPolicy< BaseGrid::Rank >, GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > > | |
| enum | |
| typedef Transformation::value_type | value_type |
| typedef CheckingPolicy< BaseGrid::Rank > | CheckingPolicyType |
| typedef GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > | StoragePolicyType |
| typedef CheckingPolicy< BaseGrid::Rank > ::IndexType | IndexType |
| typedef GridBase< Transformation::value_type, rank, CheckingPolicy< BaseGrid::Rank >, GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > > | GridBaseType |
| Public Types inherited from schnek::GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > | |
| typedef Array< int, rank > | IndexType |
| typedef BaseGrid | BaseGridType |
| typedef Transformation | TransformationType |
Public Member Functions | |
| GridTransform () | |
| GridTransform (BaseGridType &baseGrid_) | |
| Public Member Functions inherited from schnek::GridBase< Transformation::value_type, BaseGrid::Rank, CheckingPolicy< BaseGrid::Rank >, GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > > | |
| GridBase (const Array< int, rank, ArrayCheckingPolicy > &size) | |
| GridBase (const Array< int, rank, ArrayCheckingPolicy > &low, const Array< int, rank, ArrayCheckingPolicy > &high) | |
| Transformation::value_type & | operator[] (const Array< int, rank, ArrayCheckingPolicy > &pos) |
| Transformation::value_type | operator[] (const Array< int, rank, ArrayCheckingPolicy > &pos) const |
| Transformation::value_type & | operator[] (const ArrayExpression< Operator, Length > &pos) |
| Transformation::value_type | operator[] (const ArrayExpression< Operator, Length > &pos) const |
| Transformation::value_type & | operator[] (int i) |
| Transformation::value_type | operator[] (int i) const |
| Transformation::value_type & | operator() (int i) |
| Transformation::value_type | operator() (int i) const |
| Transformation::value_type & | operator() (int i, int j) |
| Transformation::value_type | operator() (int i, int j) const |
| Transformation::value_type & | operator() (int i, int j, int k) |
| Transformation::value_type | operator() (int i, int j, int k) const |
| Transformation::value_type & | operator() (int i, int j, int k, int l) |
| Transformation::value_type | operator() (int i, int j, int k, int l) const |
| Transformation::value_type & | operator() (int i, int j, int k, int l, int m) |
| Transformation::value_type | operator() (int i, int j, int k, int l, int m) const |
| Transformation::value_type & | operator() (int i, int j, int k, int l, int m, int o) |
| Transformation::value_type | operator() (int i, int j, int k, int l, int m, int o) const |
| Transformation::value_type & | operator() (int i, int j, int k, int l, int m, int o, int p) |
| Transformation::value_type | operator() (int i, int j, int k, int l, int m, int o, int p) const |
| Transformation::value_type & | operator() (int i, int j, int k, int l, int m, int o, int p, int q) |
| Transformation::value_type | operator() (int i, int j, int k, int l, int m, int o, int p, int q) const |
| Transformation::value_type & | operator() (int i, int j, int k, int l, int m, int o, int p, int q, int r) |
| Transformation::value_type | operator() (int i, int j, int k, int l, int m, int o, int p, int q, int r) const |
| Transformation::value_type & | operator() (int i, int j, int k, int l, int m, int o, int p, int q, int r, int s) |
| Transformation::value_type | operator() (int i, int j, int k, int l, int m, int o, int p, int q, int r, int s) const |
| GridBase< Transformation::value_type, rank, CheckingPolicy< BaseGrid::Rank >, GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > > & | operator= (const GridBase< Transformation::value_type, rank, CheckingPolicy< BaseGrid::Rank >, GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > > &) |
| GridBase< Transformation::value_type, rank, CheckingPolicy< BaseGrid::Rank >, GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > > & | operator= (const GridBase< T2, rank, CheckingPolicy2, StoragePolicy2 > &) |
| GridBase< Transformation::value_type, rank, CheckingPolicy< BaseGrid::Rank >, GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > > & | operator= (const Transformation::value_type &val) |
| GridBase< Transformation::value_type, rank, CheckingPolicy< BaseGrid::Rank >, GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > > & | operator-= (GridBase< T2, rank, CheckingPolicy2, GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > > &) |
| GridBase< Transformation::value_type, rank, CheckingPolicy< BaseGrid::Rank >, GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > > & | operator-= (GridBase< T2, rank, CheckingPolicy2, StoragePolicy2 > &) |
| GridBase< Transformation::value_type, rank, CheckingPolicy< BaseGrid::Rank >, GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > > & | operator+= (GridBase< T2, rank, CheckingPolicy2, GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > > &) |
| GridBase< Transformation::value_type, rank, CheckingPolicy< BaseGrid::Rank >, GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > > & | operator+= (GridBase< T2, rank, CheckingPolicy2, StoragePolicy2 > &) |
| void | resize (const IndexType &size) |
| void | resize (const IndexType &low, const IndexType &high) |
| void | resize (const GridBase< T2, rank, CheckingPolicy2, StoragePolicy2 > &grid) |
| Public Member Functions inherited from schnek::GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > | |
| BaseGrid::value_type & | get (const IndexType &index) |
| BaseGrid::value_type | get (const IndexType &index) const |
| const IndexType & | getLo () const |
| int | getLo (int k) const |
| const IndexType & | getHi () const |
| int | getHi (int k) const |
| const IndexType & | getDims () const |
| int | getDims (int k) const |
| const_storage_iterator | begin () |
| const_storage_iterator | end () |
| const_storage_iterator | cbegin () const |
| const_storage_iterator | cend () const |
| void | setBaseGrid (BaseGridType &baseGrid_) |
| Transformation | getTransformation () const |
| void | setTransformation (const Transformation &transformation) |
Additional Inherited Members | |
| Protected Member Functions inherited from schnek::GridBase< Transformation::value_type, BaseGrid::Rank, CheckingPolicy< BaseGrid::Rank >, GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > > | |
| void | copyFromGrid (const GridBase< T2, rank, CheckingPolicy2, GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > > &grid) |
| Protected Attributes inherited from schnek::GridTransformStorage< BaseGrid::value_type, BaseGrid::Rank, BaseGrid, Transformation > | |
| BaseGridType * | baseGrid |
| Transformation | transformation |
Constructor & Destructor Documentation
◆ GridTransform() [1/2]
template<class BaseGrid , typename Transformation , template< int > class CheckingPolicy = GridNoArgCheck>
| schnek::GridTransform< BaseGrid, Transformation, CheckingPolicy >::GridTransform | ( | ) |
default constructor creates an empty grid
◆ GridTransform() [2/2]
template<class BaseGrid , typename Transformation , template< int > class CheckingPolicy = GridNoArgCheck>
| schnek::GridTransform< BaseGrid, Transformation, CheckingPolicy >::GridTransform | ( | BaseGridType & | baseGrid_ | ) |
constructor, which builds Grid of size size[0] x ... x size[rank-1]
Example: {verbatim} Grid<double,2>::IndexType size=(512,512); Grid<double,2> m(size); {verbatim}
The ranges then extend from 0 to size[i]-1
The documentation for this class was generated from the following file:
- src/grid/gridtransform.hpp
