schnek::Field< T, rank, CheckingPolicy, StoragePolicy > Class Template Reference
Inheritance diagram for schnek::Field< T, rank, CheckingPolicy, StoragePolicy >:

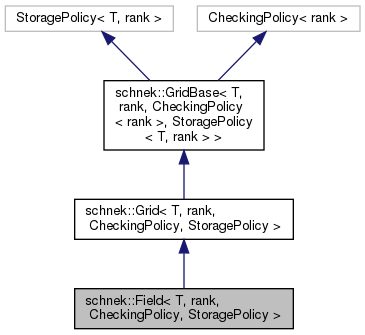

Collaboration diagram for schnek::Field< T, rank, CheckingPolicy, StoragePolicy >:
Public Types | |
| typedef T | value_type |
| typedef Range< double, rank > | RangeType |
| typedef Range< double, rank >::LimitType | RangeLimit |
| typedef Array< bool, rank > | Stagger |
| typedef Grid< T, rank, CheckingPolicy, StoragePolicy >::IndexType | IndexType |
| typedef Field< T, rank, CheckingPolicy, StoragePolicy > | FieldType |
| typedef GridBase< T, rank, CheckingPolicy< rank >, StoragePolicy< T, rank > > | BaseType |
 Public Types inherited from schnek::Grid< T, rank, CheckingPolicy, StoragePolicy > | |
| enum | { Rank = rank } |
| typedef T | value_type |
| typedef Array< int, rank > | IndexType |
| typedef Range< int, rank > | RangeType |
| typedef Grid< T, rank, CheckingPolicy, StoragePolicy > | GridType |
| typedef GridBase< T, rank, CheckingPolicy< rank >, StoragePolicy< T, rank > > | BaseType |
| Public Types inherited from schnek::GridBase< T, rank, CheckingPolicy< rank >, StoragePolicy< T, rank > > | |
| enum | |
| typedef T | value_type |
| typedef CheckingPolicy< rank > | CheckingPolicyType |
| typedef StoragePolicy< T, rank > | StoragePolicyType |
| typedef CheckingPolicy< rank > ::IndexType | IndexType |
| typedef GridBase< T, rank, CheckingPolicy< rank >, StoragePolicy< T, rank > > | GridBaseType |
Public Member Functions | |
| Field () | |
| template<template< int > class ArrayCheckingPolicy, template< int > class RangeCheckingPolicy, template< int > class StaggerCheckingPolicy> | |
| Field (const Array< int, rank, ArrayCheckingPolicy > &size, const Range< double, rank, RangeCheckingPolicy > &range_, const Array< bool, rank, StaggerCheckingPolicy > &stagger_, int ghostCells_) | |
| template<template< int > class ArrayCheckingPolicy, template< int > class RangeCheckingPolicy, template< int > class StaggerCheckingPolicy> | |
| Field (const Array< int, rank, ArrayCheckingPolicy > &low_, const Array< int, rank, ArrayCheckingPolicy > &high_, const Range< double, rank, RangeCheckingPolicy > &range_, const Array< bool, rank, StaggerCheckingPolicy > &stagger_, int ghostCells_) | |
| Field (const FieldType &) | |
| IndexType | getInnerLo () |
| IndexType | getInnerHi () |
| void | positionToIndex (int dim, double pos, int &index, double &offset) |
| int | positionToIndex (int dim, double pos) |
| double | indexToPosition (int dim, int index) |
| Calculates the position of a grid point. | |
| Stagger & | getStagger () |
| Get all three components of the grid stagger. | |
| bool | getStagger (int i) |
| Get a single component of the grid stagger. | |
| FieldType & | operator= (const T &val) |
| FieldType & | operator= (const FieldType &grid) |
| template<typename T2 , template< int > class CheckingPolicy2, template< typename, int > class StoragePolicy2> | |
| FieldType & | operator= (const Field< T2, rank, CheckingPolicy2, StoragePolicy2 > &grid) |
| template<typename T2 , class CheckingPolicy2 , class StoragePolicy2 > | |
| FieldType & | operator= (const GridBase< T2, rank, CheckingPolicy2, StoragePolicy2 > &grid) |
| template<template< int > class ArrayCheckingPolicy, template< int > class RangeCheckingPolicy, template< int > class StaggerCheckingPolicy> | |
| void | resize (const Array< int, rank, ArrayCheckingPolicy > &size, const Range< double, rank, RangeCheckingPolicy > &range_, const Array< bool, rank, StaggerCheckingPolicy > &stagger_, int ghostCells_) |
| template<template< int > class ArrayCheckingPolicy, template< int > class RangeCheckingPolicy, template< int > class StaggerCheckingPolicy> | |
| void | resize (const Array< int, rank, ArrayCheckingPolicy > &low_, const Array< int, rank, ArrayCheckingPolicy > &high_, const Range< double, rank, RangeCheckingPolicy > &range_, const Array< bool, rank, StaggerCheckingPolicy > &stagger_, int ghostCells_) |
| Public Member Functions inherited from schnek::Grid< T, rank, CheckingPolicy, StoragePolicy > | |
| Grid () | |
| Grid (const IndexType &size) | |
| Grid (const IndexType &low, const IndexType &high) | |
| Grid (const RangeType &range) | |
| Grid (const Grid< T, rank, CheckingPolicy, StoragePolicy > &) | |
| GridType & | operator= (const T &val) |
| GridType & | operator= (const GridType &grid) |
| template<typename T2 , class CheckingPolicy2 , class StoragePolicy2 > | |
| GridType & | operator= (const GridBase< T2, rank, CheckingPolicy2, StoragePolicy2 > &grid) |
| Public Member Functions inherited from schnek::GridBase< T, rank, CheckingPolicy< rank >, StoragePolicy< T, rank > > | |
| GridBase (const Array< int, rank, ArrayCheckingPolicy > &size) | |
| GridBase (const Array< int, rank, ArrayCheckingPolicy > &low, const Array< int, rank, ArrayCheckingPolicy > &high) | |
| T & | operator[] (const Array< int, rank, ArrayCheckingPolicy > &pos) |
| T | operator[] (const Array< int, rank, ArrayCheckingPolicy > &pos) const |
| T & | operator[] (const ArrayExpression< Operator, Length > &pos) |
| T | operator[] (const ArrayExpression< Operator, Length > &pos) const |
| T & | operator[] (int i) |
| T | operator[] (int i) const |
| T & | operator() (int i) |
| T | operator() (int i) const |
| T & | operator() (int i, int j) |
| T | operator() (int i, int j) const |
| T & | operator() (int i, int j, int k) |
| T | operator() (int i, int j, int k) const |
| T & | operator() (int i, int j, int k, int l) |
| T | operator() (int i, int j, int k, int l) const |
| T & | operator() (int i, int j, int k, int l, int m) |
| T | operator() (int i, int j, int k, int l, int m) const |
| T & | operator() (int i, int j, int k, int l, int m, int o) |
| T | operator() (int i, int j, int k, int l, int m, int o) const |
| T & | operator() (int i, int j, int k, int l, int m, int o, int p) |
| T | operator() (int i, int j, int k, int l, int m, int o, int p) const |
| T & | operator() (int i, int j, int k, int l, int m, int o, int p, int q) |
| T | operator() (int i, int j, int k, int l, int m, int o, int p, int q) const |
| T & | operator() (int i, int j, int k, int l, int m, int o, int p, int q, int r) |
| T | operator() (int i, int j, int k, int l, int m, int o, int p, int q, int r) const |
| T & | operator() (int i, int j, int k, int l, int m, int o, int p, int q, int r, int s) |
| T | operator() (int i, int j, int k, int l, int m, int o, int p, int q, int r, int s) const |
| GridBase< T, rank, CheckingPolicy< rank >, StoragePolicy< T, rank > > & | operator= (const GridBase< T, rank, CheckingPolicy< rank >, StoragePolicy< T, rank > > &) |
| GridBase< T, rank, CheckingPolicy< rank >, StoragePolicy< T, rank > > & | operator= (const GridBase< T2, rank, CheckingPolicy2, StoragePolicy2 > &) |
| GridBase< T, rank, CheckingPolicy< rank >, StoragePolicy< T, rank > > & | operator= (const T &val) |
| GridBase< T, rank, CheckingPolicy< rank >, StoragePolicy< T, rank > > & | operator-= (GridBase< T2, rank, CheckingPolicy2, StoragePolicy< T, rank > > &) |
| GridBase< T, rank, CheckingPolicy< rank >, StoragePolicy< T, rank > > & | operator-= (GridBase< T2, rank, CheckingPolicy2, StoragePolicy2 > &) |
| GridBase< T, rank, CheckingPolicy< rank >, StoragePolicy< T, rank > > & | operator+= (GridBase< T2, rank, CheckingPolicy2, StoragePolicy< T, rank > > &) |
| GridBase< T, rank, CheckingPolicy< rank >, StoragePolicy< T, rank > > & | operator+= (GridBase< T2, rank, CheckingPolicy2, StoragePolicy2 > &) |
| void | resize (const IndexType &size) |
| void | resize (const IndexType &low, const IndexType &high) |
| void | resize (const GridBase< T2, rank, CheckingPolicy2, StoragePolicy2 > &grid) |
Additional Inherited Members | |
| Protected Member Functions inherited from schnek::GridBase< T, rank, CheckingPolicy< rank >, StoragePolicy< T, rank > > | |
| void | copyFromGrid (const GridBase< T2, rank, CheckingPolicy2, StoragePolicy< T, rank > > &grid) |
Constructor & Destructor Documentation
◆ Field() [1/3]
template<typename T, int rank, template< int > class CheckingPolicy = GridNoArgCheck, template< typename, int > class StoragePolicy = SingleArrayGridStorage>
| schnek::Field< T, rank, CheckingPolicy, StoragePolicy >::Field | ( | ) |
default constructor creates an empty grid
◆ Field() [2/3]
template<typename T, int rank, template< int > class CheckingPolicy = GridNoArgCheck, template< typename, int > class StoragePolicy = SingleArrayGridStorage>
template<template< int > class ArrayCheckingPolicy, template< int > class RangeCheckingPolicy, template< int > class StaggerCheckingPolicy>
| schnek::Field< T, rank, CheckingPolicy, StoragePolicy >::Field | ( | const Array< int, rank, ArrayCheckingPolicy > & | size, |
| const Range< double, rank, RangeCheckingPolicy > & | range_, | ||
| const Array< bool, rank, StaggerCheckingPolicy > & | stagger_, | ||
| int | ghostCells_ | ||
| ) |
Constructs a grid with a given number of cells in each direction
◆ Field() [3/3]
template<typename T, int rank, template< int > class CheckingPolicy = GridNoArgCheck, template< typename, int > class StoragePolicy = SingleArrayGridStorage>
| schnek::Field< T, rank, CheckingPolicy, StoragePolicy >::Field | ( | const FieldType & | ) |
copy constructor
Member Function Documentation
◆ getInnerHi()
template<typename T, int rank, template< int > class CheckingPolicy = GridNoArgCheck, template< typename, int > class StoragePolicy = SingleArrayGridStorage>
|
inline |
Get the hi if the inner domain
◆ getInnerLo()
template<typename T, int rank, template< int > class CheckingPolicy = GridNoArgCheck, template< typename, int > class StoragePolicy = SingleArrayGridStorage>
|
inline |
Get the lo if the inner domain
◆ operator=() [1/4]
template<typename T, int rank, template< int > class CheckingPolicy = GridNoArgCheck, template< typename, int > class StoragePolicy = SingleArrayGridStorage>
|
inline |
assign a value to the field
◆ operator=() [2/4]
template<typename T, int rank, template< int > class CheckingPolicy = GridNoArgCheck, template< typename, int > class StoragePolicy = SingleArrayGridStorage>
|
inline |
assign another grid
◆ operator=() [3/4]
template<typename T, int rank, template< int > class CheckingPolicy = GridNoArgCheck, template< typename, int > class StoragePolicy = SingleArrayGridStorage>
template<typename T2 , template< int > class CheckingPolicy2, template< typename, int > class StoragePolicy2>
|
inline |
assign another grid
◆ operator=() [4/4]
template<typename T, int rank, template< int > class CheckingPolicy = GridNoArgCheck, template< typename, int > class StoragePolicy = SingleArrayGridStorage>
template<typename T2 , class CheckingPolicy2 , class StoragePolicy2 >
|
inline |
assign another grid
◆ positionToIndex() [1/2]
template<typename T, int rank, template< int > class CheckingPolicy = GridNoArgCheck, template< typename, int > class StoragePolicy = SingleArrayGridStorage>
| void schnek::Field< T, rank, CheckingPolicy, StoragePolicy >::positionToIndex | ( | int | dim, |
| double | pos, | ||
| int & | index, | ||
| double & | offset | ||
| ) |
Calculates index and offset from a position on the field
The index returned is the index of the grid point left of the position.
◆ positionToIndex() [2/2]
template<typename T, int rank, template< int > class CheckingPolicy = GridNoArgCheck, template< typename, int > class StoragePolicy = SingleArrayGridStorage>
| int schnek::Field< T, rank, CheckingPolicy, StoragePolicy >::positionToIndex | ( | int | dim, |
| double | pos | ||
| ) |
Calculates index from a position on the field
The index returned is the index of the grid point left of the position.
◆ resize()
template<typename T, int rank, template< int > class CheckingPolicy = GridNoArgCheck, template< typename, int > class StoragePolicy = SingleArrayGridStorage>
template<template< int > class ArrayCheckingPolicy, template< int > class RangeCheckingPolicy, template< int > class StaggerCheckingPolicy>
| void schnek::Field< T, rank, CheckingPolicy, StoragePolicy >::resize | ( | const Array< int, rank, ArrayCheckingPolicy > & | size, |
| const Range< double, rank, RangeCheckingPolicy > & | range_, | ||
| const Array< bool, rank, StaggerCheckingPolicy > & | stagger_, | ||
| int | ghostCells_ | ||
| ) |
Constructs a grid with a given number of cells in each direction
The documentation for this class was generated from the following file:
- src/grid/field.hpp
